Please Note, Box shown use  AA-0501 Plate Amp

The Critical Q Sub-Woofer

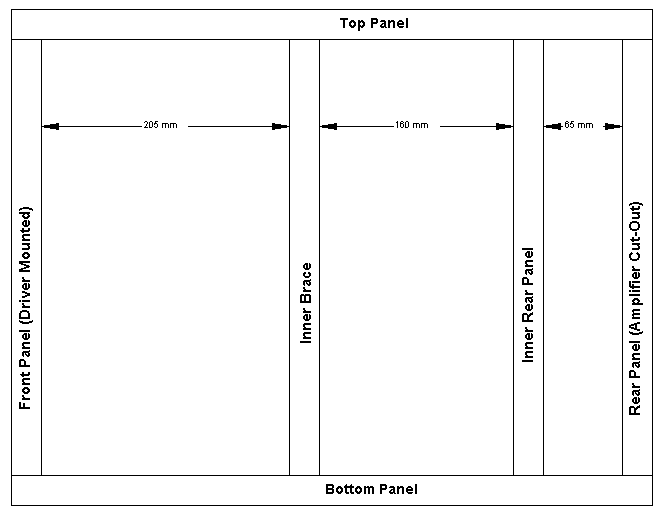

Box Construction Page

(Under Construction)

Earlier Sub Plate Amplifiers are no longer available. But PartsExpress makes what looks like a suitable amplifier, part number 300-804. According to the PDF file, the stock unit without any changes will give you good all round performance being -1.5dB @ 20 Hertz. But if you limit the subwoofer for only audiophile use, change R35 from 24K to 15K and R36 from 150K to 470K.

The box cut-out for the amplifier now need to be 216mm by 216mm.

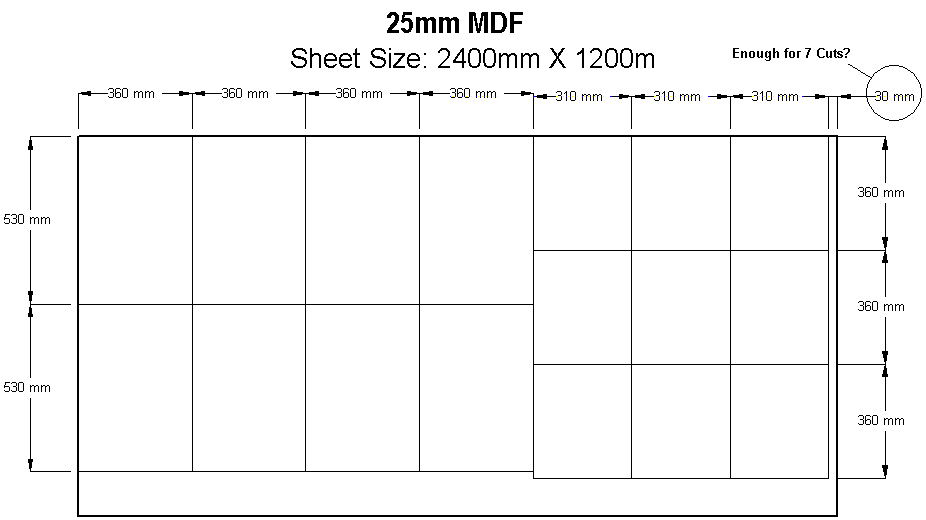

Cutting Sheet

Thumbnail of Cutting Sheet - views 926 Pixels Wide.

Use 1024 x 768 Screen Resolution

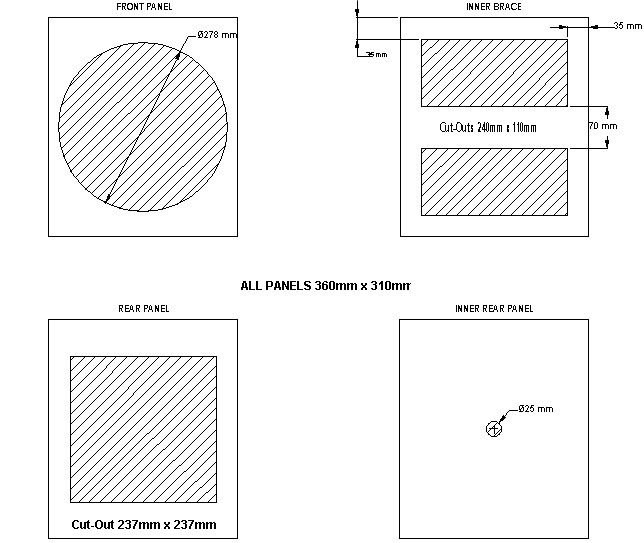

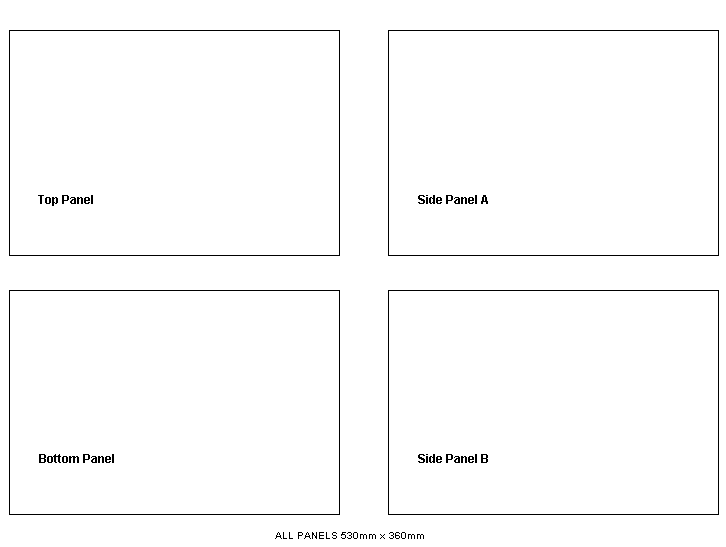

Warning: The Cut-Outs shown in those drawings should be double checked after buying the suitable 'Plate' Sub Amplifier. The dimensions shown are for the Jaycar A0501 Plate Amplifier.
