Tube Gainclone for DIY Buffs

This section of the website is dedicated to the original Tube Gainclone for DIY

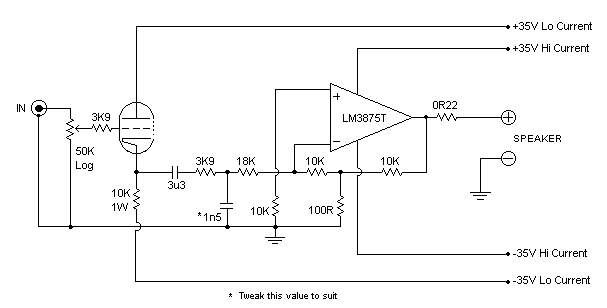

The Schematic:

Some previous knowledge of IGC amps assumed, for serious DIY Buffs

Copyrighted Material - Non-Commercial Use Only




Part One: Design Aims & General Description

Part Two: Sans Tube - What If I Don't Want To Use Tube

Part Three: Power Supply & General Wiring

Part Four: Gainclone & Sound Quality - Gazing Into The Dark

Favourite Links


PLEASE NOTE COMMERCIAL & ENHANCED VERSION

The JLTi Mark 2 is hugely improved over the DIY version

More Info: Tube Hybrid Integrated Amplifier
